Use Multiple Data Stores in Queries

In DeltaStream, your streaming data resides in a Data Store. Apache Kafka and Amazon Kinesis are two examples of such data stores. DeltaStream reads data from a streaming data store, performs the desired computation, and writes the results of the computation to the same data store (or to another, if you wish).

This article demonstrates how you can easily move data from one of your data stores to another. It also shows how you can perform joins between data in different data stores.

Before you begin, To do so, please review the following:

• Create Data Stores for Streaming Data

• Create DeltaStream Objects to Structure Raw Data

Before you begin

Before you begin, you should create data stores and DeltaStream objects in DeltaStream, if you haven't already. Set up the following:

• Two data stores—a Kafka data store called MSK and a Kinesis data store called kinesis_store

• A stream in kinesis_store called pageviews_kinesis

• A stream in MSK called users_kafka

For details on setting these up, please see Create Data Stores for Streaming Data and Create DeltaStream Objects to Structure Raw Data.

Working with Multiple Data Stores

1. In the lefthand navigation, click Resources ( ) to display a list of data stores. Here you'll find your Kafka and Kinesis stores.

Kafka and Kinesis Stores.

1. The Kinesis data store has a Kinesis data stream called pageviews. In DeltaStream, use a CREATE STREAM query, as shown below, to create a Stream called pageviews_kinesis that is backed by the pageviews Kinesis stream.

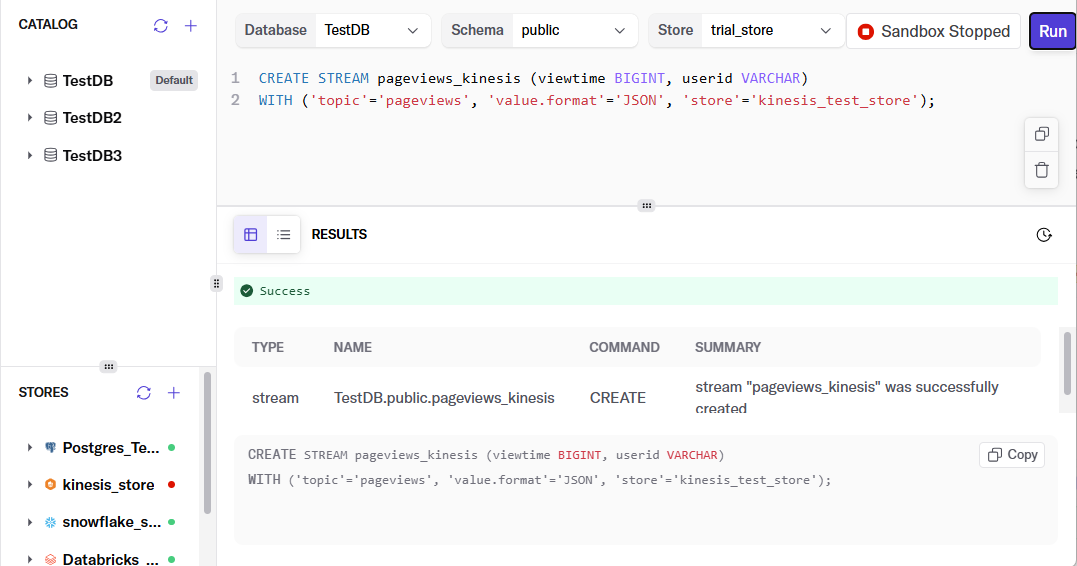

Creating the pageviews_kinesisStream.

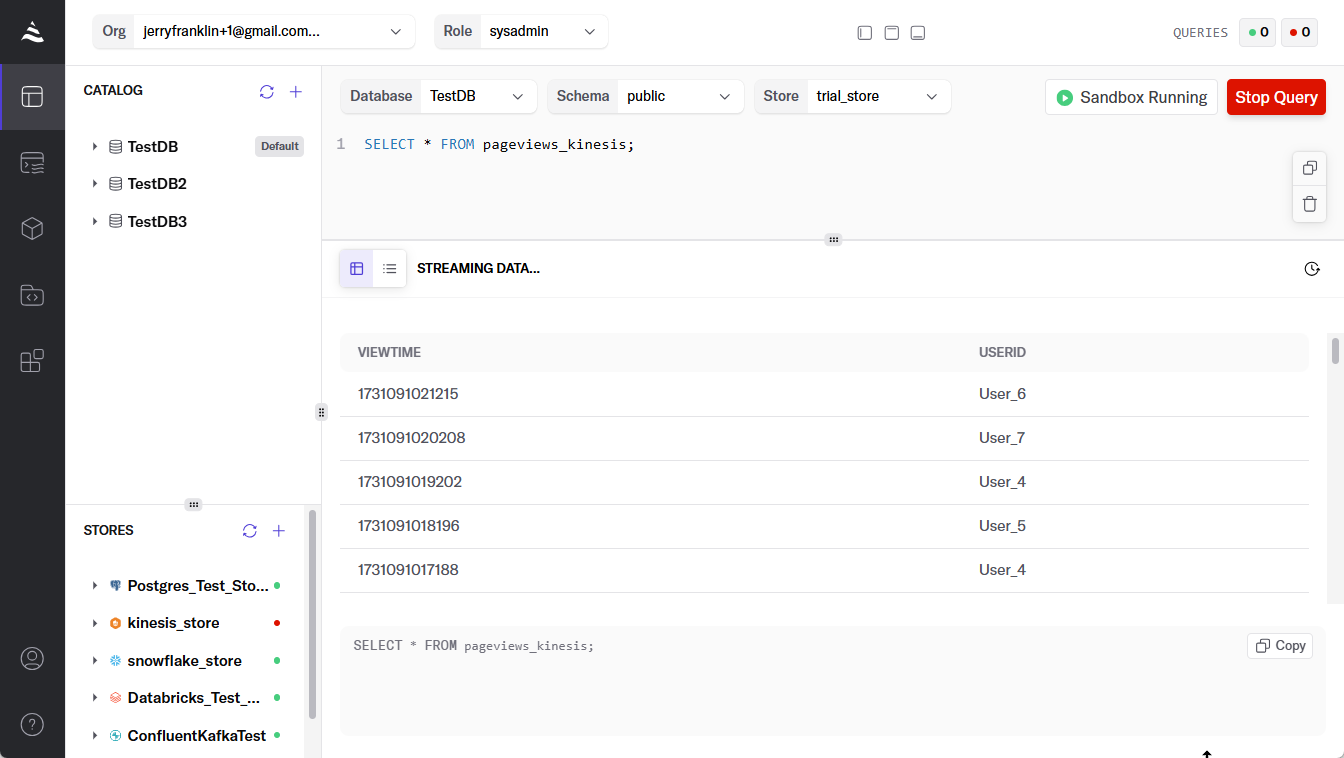

Kinesis Stream Results

1. The Kafka data store has a Kafka topic called ds_users. In DeltaStream, use a CREATE STREAM query shown below to create a Stream called users_kafka that is backed by the ds_users Kafka topic.

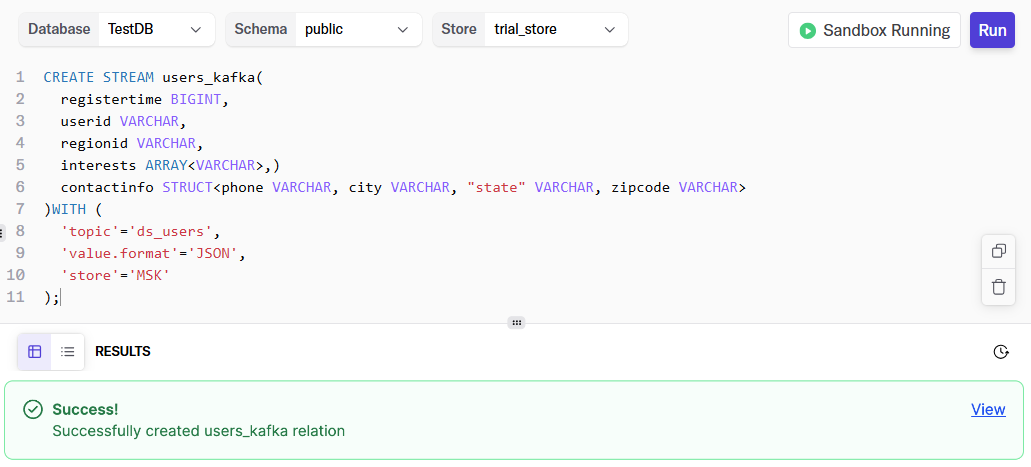

Creating the users_kafkaStream.

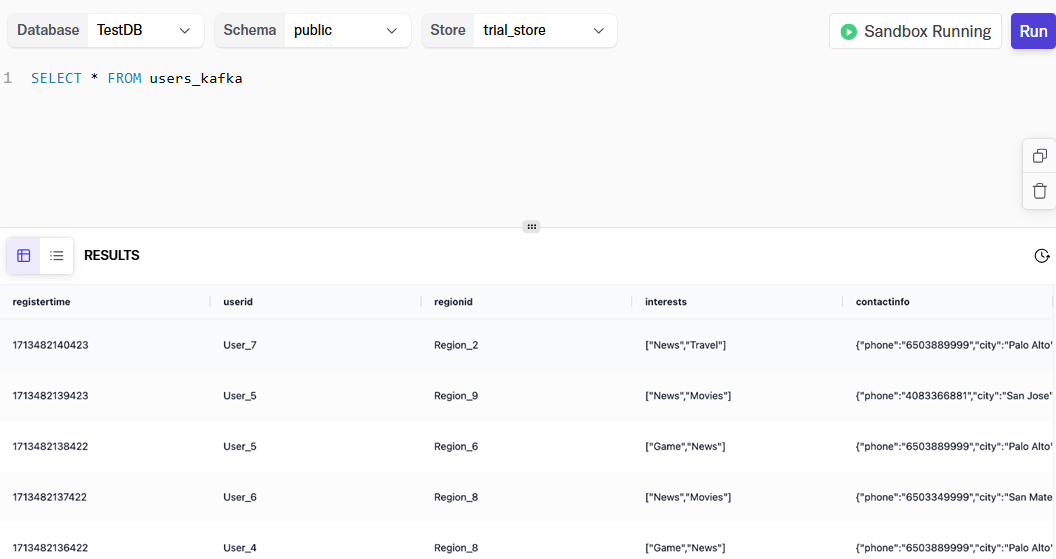

Kafka Stream Results

With your two data stores established, each with an associated relation, you can write your queries.

Move Data from One Data Store to Another

To migrate data out of Kinesis and into Kafka, create a new stream that selects all the columns from an existing stream. Then you can specify the data store that backs the new stream.

In the setup here, there's a stream belonging to your Kinesis data store called pageviews_kinesis. Use a CREATE STREAM AS SELECT query (CSAS) to create a new stream that is essentially a copy of the pageviews_kinesis stream in the Kafka data store. Label this new stream pageviews_kafka.

Creating a Kafka Stream that is a copy of a Kinesis Stream.

Note the CSAS query above includes the store property in the WITH clause of the sink stream, with a value of kafka_store. A CSAS query creates a new stream; specifying this property informs the query about which data store should back this new stream. Leave the store property empty, and the query defaults to using the session’s current data store. You must include the topic.replicas and topic.partitions properties; these are necessary when creating a new Kafka topic.

Tip If the source in this query was a stream backed by a Kafka topic, then DeltaStream would use the source’s topic.replicas and topic.partitions values by default. But here you're reading from a Kinesis-backed stream, and DeltaStream cannot infer the value of these properties; you must set them explicitly in the query.

Navigate to Resources > Kafka Store to see that a new Kafka topic, called pageviews_kafka, has been created and displays in the topic list. The streaming data for the newly-created pageviews_kafka stream is stored in this topic. Click the topic to print and see the records flowing through. These records are a copy of the pageviews_kinesis records.

The new stream copy.

Join Data from Sources Belonging to Different Data Stores

In DeltaStream, when you define a Stream or Changelog you can use it as a source for queries. The example below demonstrates how you can join the pageviews_kinesis stream and the users_kafka stream. Simply use these streams as sources in your query; you do not need any additional specifications related to the data stores that back them. DeltaStream keeps this information as metadata with the stream. Behind the scenes, DeltaStream seamlessly reads from both data stores, performs the join, and then outputs the result to the sink stream. Again, use a CREATE STREAM AS SELECT query to create the output stream. Since this joins two streams, this query is an #interval-join-stream-stream that requires the WITHIN clause.

Using a CREATE STREAM AS SELECT query.

Note in the CSAS above that in the WITH clause you specify the output data store to be kinesis_store, similar to what you did in the section above. But even though you're creating a new Kinesis stream, called pageviews_enriched, you don’t need to provide the topic.shards property. DeltaStream infers the default value from the left-most source when possible. The sink stream and the left-most source are both backed by Kinesis streams, so pageview_kinesis’s topic.shards property is applied to pageviews_enriched.

Navigate to Resources > Kinesis_store > Topics to see that there's a new Kinesis entity called pageviews_enriched. This is where the streaming data for the newly-created pageviews_enriched stream is stored. Click that entity to print and see the records flowing through. These records result from the join between pageviews_kinesis and users_kafka.
